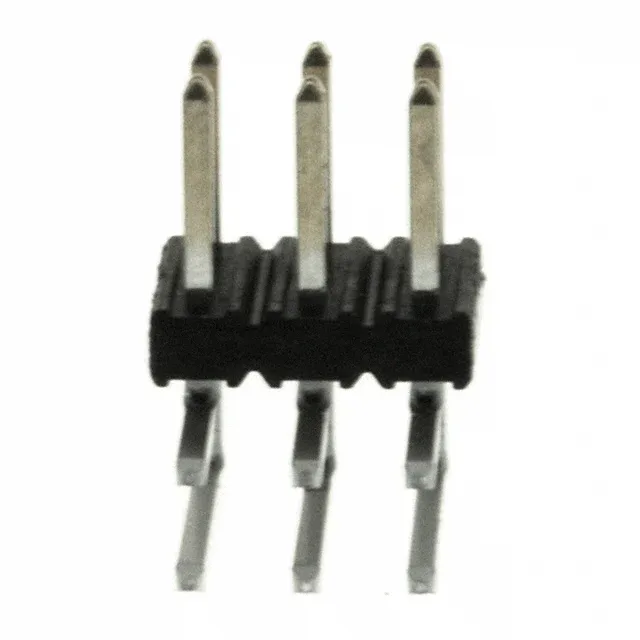

98423-G61-03LF — Amphenol product photo
Amphenol

98423-G61-03LF Amphenol Minitek 2.00mm Header, 6 Pos, R/A

MPN98423-G61-03LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm unshrouded header, 6 positions, dual-row, right-angle through-hole, male pin, gold GXT™ mating finish, 2 A, 200 V, UL94 V-0, bulk.

$0.8800Ref. price · indicative, final on quote
98423-G61-03LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98423-G61-03LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.157\" (4.00mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions6
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

2.00 mm pitch, 6-position right-angle header

The 98423-G61-03LF: Rated 2 A per contact at 200 V AC/DC, with a gold GXT™ mating finish at 30.0 µinch thickness.

What this mates with and what it fits

As an unshrouded header, it mates with a standard Minitek® 2.00mm receptacle housing (crimp or IDC type) that accepts the matching female terminal.

RoHS compliant. The base product number is 98423 — the suffix -G61-03LF encodes the gold plating, right-angle orientation, and bulk packaging. No official second-source or pin-compatible alternative is listed in the same series.

Frequently asked questions

Is 98423-G61-03LF shrouded or unshrouded?

Unshrouded. There is no plastic shroud around the pins — the mating receptacle relies on the pin alignment and the housing friction for positioning.

What is the mating connector for 98423-G61-03LF?

It mates with a Minitek 2.00mm receptacle housing that accepts the corresponding female crimp terminal. The receptacle is a separate order code — confirm the circuit count and keying match your harness.
