Amphenol ICC (FCI) Minitek® 2.00mm header, 98423-G61-04LF, 8 positions loaded in 2 rows, 2.00mm pitch, unshrouded, right-angle through-hole, 30.0µin gold GXT™ mating finish, tin post, rated 2A at 200V AC/DC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98423-G61-04LF: The 0.157" (4.00 mm) mating pin length provides a secure engagement depth for standard Minitek 2.00mm receptacles.

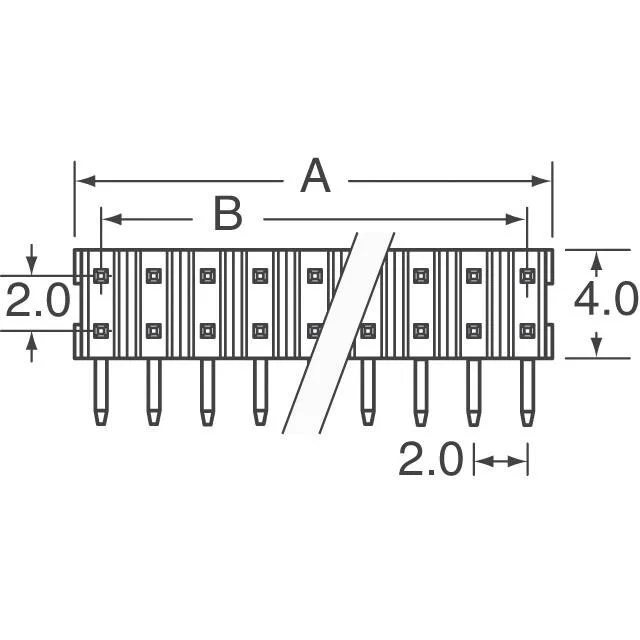

This unshrouded header mates with Minitek 2.00mm receptacle housings (e.g., 98414 series or 98416 series) that accept crimp terminals. The 0.079" (2.00 mm) row spacing matches the pitch, so the 2-row layout occupies a 4.00 mm × 8.00 mm footprint on the board (excluding the post length). The 0.098" (2.50 mm) post length is suitable for standard 1.6 mm thick PCBs.
This header mates with Minitek 2.00mm receptacle housings that accept crimp terminals — typically the 98414 or 98416 series. Confirm the specific receptacle part number against your harness design.
