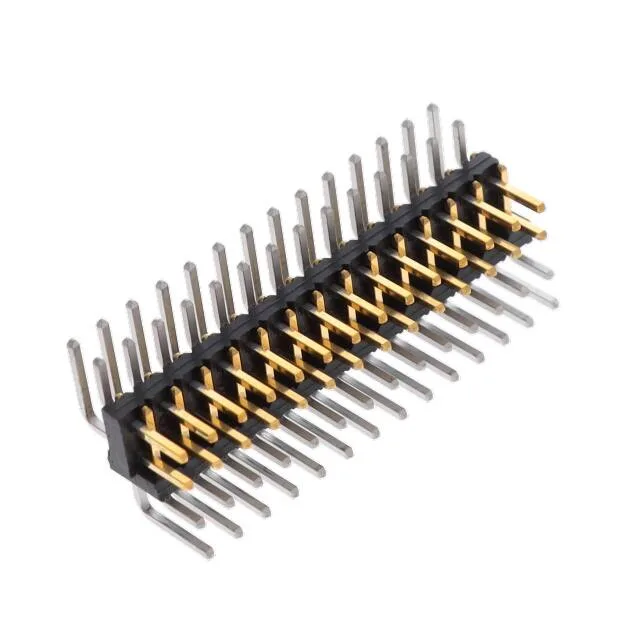

Amphenol ICC (FCI) Minitek® 2.00mm, 28-position, 2-row, unshrouded male header, through-hole right-angle termination, gold GXT™ mating finish, 2 A per contact, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98423-G61-14LF: Rated 2 A per contact (AC/DC) at 200 V.
Useful for board-edge applications where the cable routes flat against the enclosure wall. Unshrouded design: the male pins are exposed above the insulation body. This mates with a standard Minitek® 2.00mm receptacle housing (crimp or IDC) that provides its own shroud.
UL94 V-0 flammability rated housing.
Yes — the Minitek® 2.00mm series from Amphenol ICC is RoHS compliant by default. The tin-plated solder tails and gold GXT™ mating finish are lead-free process compatible.
