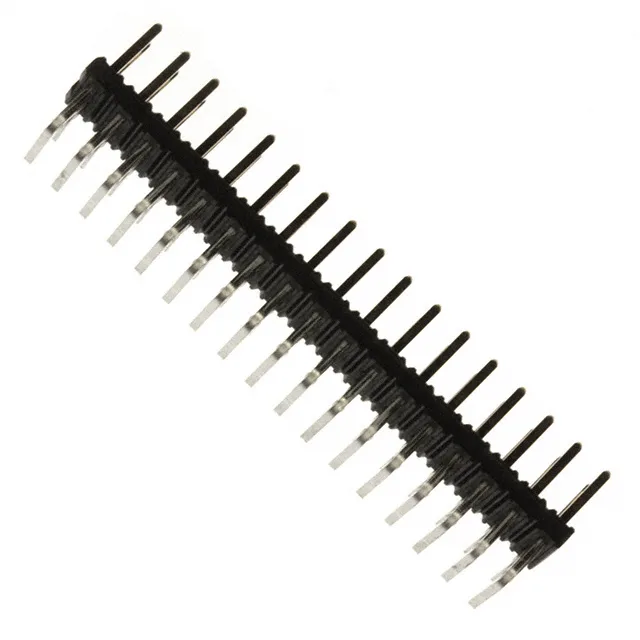

Molex Minitek 98423-G61-17LF Header 34-pos 2.00mm
Molex Minitek 2.00mm dual-row header, 34 positions, right-angle through-hole, 2A per circuit at 200V AC/DC, gold GXT on mating contact, tin on solder post, 0.157 inch insulation height, UL94 V-0 thermoplastic, push-pull fastening.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 34 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
Where can I buy the 98423-G61-17LF and how do I get a price?
Through independent distribution — request a quote and the distributor will confirm current pricing and lead time against your BOM quantity.
What series is the 98423-G61-17LF from?
The 98423-G61-17LF is part of the Molex Minitek 2.00mm board-to-board header series — a dual-row unshrouded family with through-hole right-angle mounting.
What connector type is the 98423-G61-17LF?
It is a board-to-board style header — a dual-row unshrouded male pin connector with push-pull fastening, designed for through-hole right-angle mounting on a PCB.
What compliance documentation does Molex provide for the 98423-G61-17LF?
The housing is rated UL94 V-0 (thermoplastic). Specific RoHS/REACH or UL file documentation should be requested directly from Molex or the distributor at quote time.
