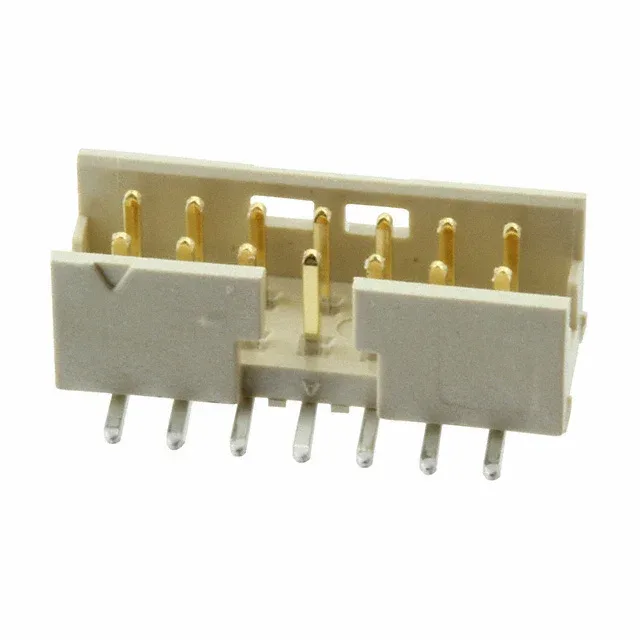

98424-F52-14ALF — Amphenol product photo
Amphenol

98424-F52-14ALF Amphenol ICC Minitek 2.00mm 14-Pin SMT

MPN98424-F52-14ALF
Active

Amphenol ICC (FCI) Minitek® 2.00mm series, 98424-F52-14ALF, a 14-position, 2-row, shrouded SMT header with gold flash mating contacts and latch holder fastening, rated 2A at 200V AC/DC.

$1.7500Ref. price · indicative, final on quote
98424-F52-14ALF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98424-F52-14ALF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.244\" (6.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesKeying Slot, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - matingFlash

Product details

The 98424-F52-14ALF is a 14-position, 2-row header from the Minitek® 2.00mm series by Amphenol ICC (FCI). The pick-and-place feature on the tape-and-reel package supports automated SMT assembly.

The mating contacts are gold flash over copper alloy—a thin gold layer that provides low contact resistance and corrosion protection for moderate mating cycles.

As a surface-mount header, the 98424-F52-14ALF requires a 2.00mm pitch footprint with 0.079" row spacing. The latch holder mates with a corresponding receptacle housing; confirm the mating half's latch feature before committing the BOM line. The cream colour is cosmetic but helps visual inspection of solder joints after reflow.

Frequently asked questions

Is the 98424-F52-14ALF RoHS compliant?

Yes, the part is listed as RoHS Compliant.
