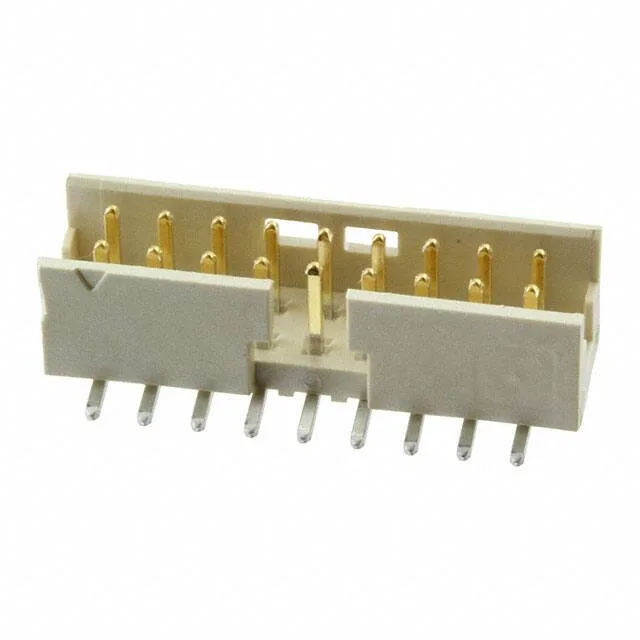

98424-F52-18ALF Amphenol ICC Minitek 2.00mm Header SMD 18

MPN98424-F52-18ALF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 18 positions, 2 rows, 0.079" pitch, SMD, shrouded - 4 wall, gold flash mating, latch holder, UL94 V-0, RoHS

$2.3200Ref. price · indicative, final on quote
98424-F52-18ALF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98424-F52-18ALF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.244\" (6.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesKeying Slot, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions18
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - matingFlash

Product details

The 98424-F52-18ALF: That pitch sets the routing channel width between pads and the minimum trace escape from the inner rows.

Shrouded, Latched, Keyed — Why That Matters for Cable-to-Board

A keying slot in the header body prevents inserting the wrong mating half. On a harness with multiple similar connectors in the same panel, that slot saves a mis-wire rework.

Gold Flash Mating — When It Works, When It Doesn't

Gold flash handles a few dozen to a few hundred mating cycles before the underlying nickel or copper starts to show. For a production harness that mates once and stays mated, that is fine. For a field-service connector that gets disconnected quarterly, spec the thicker gold option in the Minitek range. Tin wets well with standard SAC305 solder profiles and gives a reliable fillet on the SMD pad.

Sourcing and Lifecycle — Still in the Catalog

UL94 V-0 rated thermoplastic housing — the material self-extinguishes within the standard flame test window.

Frequently asked questions

What mates with 98424-F52-18ALF?

Confirm the receptacle part number against the series catalog; the keying slot and position count must match.

What is the current rating per contact?

2 A per contact at 200 V AC/DC. That is the rated current at the connector interface — derate if the ambient temperature exceeds the standard operating range or if more than half the circuits carry current simultaneously.
