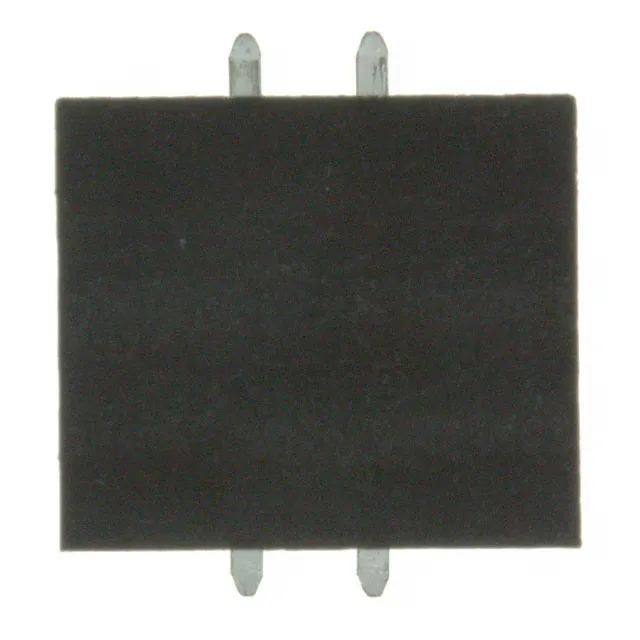

Amphenol ICC (FCI) Minitek® 2.00mm, 4-position, shrouded SMT male header, 2A AC/DC, 200V AC/DC, 30µin gold GXT™ on mating face, latch holder, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Keying Slot, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98424-G52-04ALF shares every spec with the 24-position (98424-G52-24ALF), 30-position (98424-G52-30ALF), and 40-position (98424-G52-40ALF) versions — same pitch, same 2A current rating, same 30µin gold GXT™ plating, same latch holder, same shrouded 4-wall housing in cream thermoplastic.
Submit a BOM quantity for a current price and delivery estimate.
Yes, the lifecycle record lists it as RoHS Compliant.
Yes. The header includes a keying slot in the shroud to prevent mis-mating, and a pick-and-place pad for automated SMT assembly.
This is a male pin header — it mates with any Minitek 2.00mm receptacle housing that accepts the 2.00mm pitch, 4-circuit, dual-row configuration. The latch holder on this header locks with the matching latch on the receptacle side.
