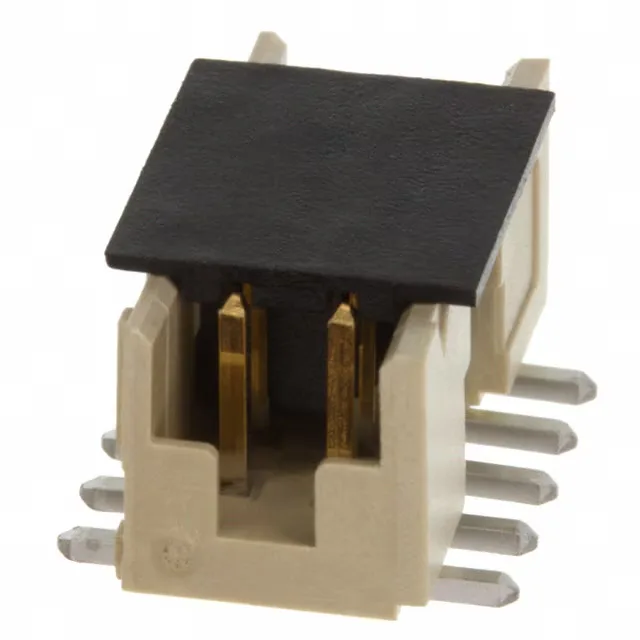

Amphenol ICC (FCI) Minitek® 2.00mm header, 98424-G52-10ALF, 10 positions dual-row, 2 A per contact, 200 V, surface mount, shrouded 4-wall, latch holder, GXT gold mating finish, UL94 V-0, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Keying Slot, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98424-G52-10ALF is a 10-position, dual-row header from the Minitek® 2.00mm series, with a 0.079" (2.00 mm) mating pitch and row spacing that sets the board footprint for dense routing.
The header includes a keying slot to prevent mis-mating with non-complementary receptacles, and a pick-and-place pad for automated SMT placement on tape-and-reel packaging.
Yes.
Yes, the header includes a keying slot to prevent mis-mating with non-complementary receptacles.
Confirm the receptacle part number against the series catalog for exact fit.
Availability and current pricing confirmed at quote time.
