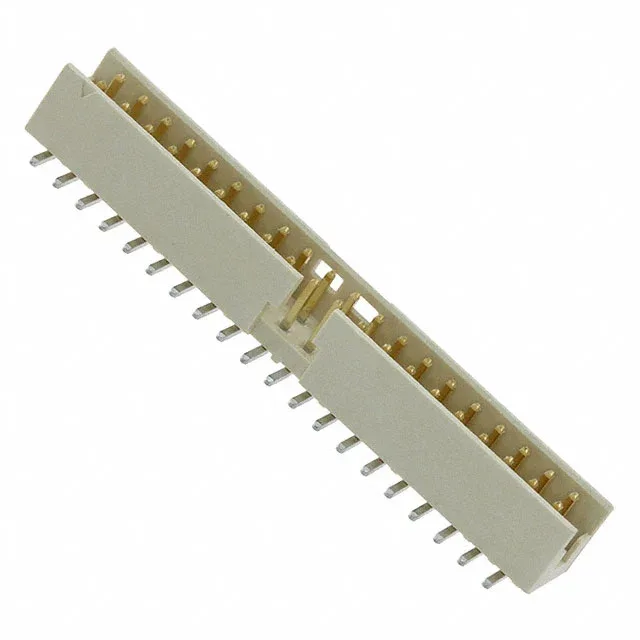

98424-G52-40LF — Amphenol product photo
Amphenol

98424-G52-40LF Amphenol ICC Minitek 2.00mm Header

MPN98424-G52-40LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 40 positions, dual row, surface mount, shrouded, latch holder, 2 A, 200 V, gold GXT™ mating finish, UL94 V-0, RoHS, bulk.

$4.4500Ref. price · indicative, final on quote
98424-G52-40LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98424-G52-40LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.244\" (6.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions40
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Gold GXT™ Mating Face and SMT Termination

The 98424-G52-40LF: The mating contacts carry 30.0 µinch gold GXT™ over nickel — a finish that supports 500+ mating cycles in a clean environment, compared to a tin finish that would fret after 50 cycles. Surface-mount termination keeps the board-side profile low; the 0.244" insulation height leaves room for passives under the header.

RoHS compliant. Availability confirmed at RFQ.

The keying slot in the header aligns with the corresponding rib in the receptacle — a non-keyed plug will not fully seat.

Frequently asked questions

What is the pitch of 98424-G52-40LF?

The mating pitch is 0.079" (2.00 mm), and the row spacing is also 0.079" (2.00 mm).

Is 98424-G52-40LF RoHS compliant?

Yes, it is RoHS compliant.
