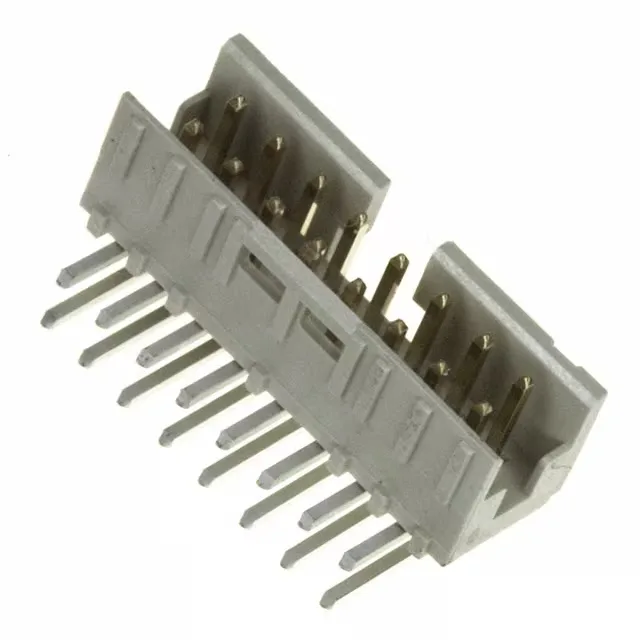

Amphenol ICC (FCI) Minitek® 2.00mm header, 16 positions, 2 rows, 0.079" pitch, right-angle through-hole, shrouded 4-wall with latch holder, gold GXT™ mating finish, 2 A, 200 V, UL94 V-0, RoHS.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98464-G61-16LF: 16 positions in two rows at 0.079" (2.00mm) pitch — the footprint takes a 2×8 grid of 0.025" square pins. Row spacing is also 2.00mm, so the board keep-out is 6.10mm wide by the length of 16 pin positions.
A keying slot in the shroud polarises the connector pair — mismatched headers or receptacles won't mate, which saves troubleshooting time on a multi-connector panel.
Yes — both are right-angle, 2.00mm pitch, shrouded headers with the same mating finish and shroud dimensions. The 14-position version simply omits two pins; the board footprint and mounting holes are identical.
