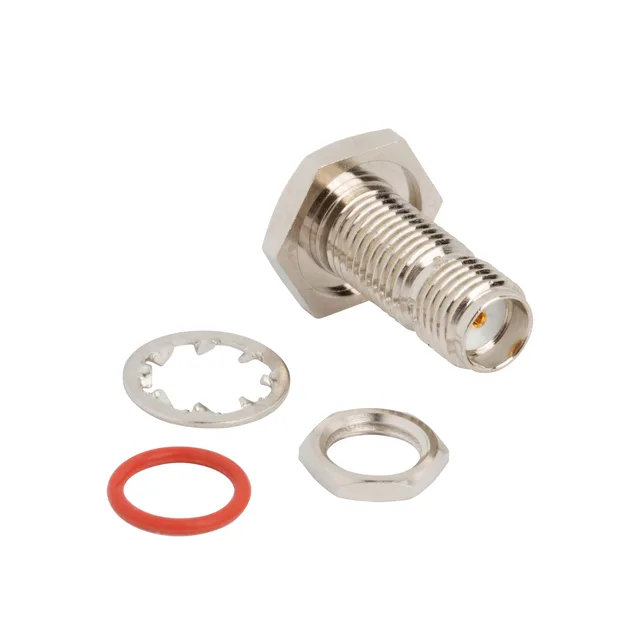

AD-SMAJMCXJ-1 — Amphenol product photo
Amphenol

AD-SMAJMCXJ-1 SMA to MCX Adapter, Jack to Jack, 50 Ohm

MPNAD-SMAJMCXJ-1
Active

Amphenol RF AD-SMAJMCXJ-1, SMA to MCX between-series adapter, straight jack-to-jack, 50 Ohm, 6 GHz, IP67, bulkhead panel mount, bulk.

$46.7800Ref. price · indicative, final on quote
AD-SMAJMCXJ-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

AD-SMAJMCXJ-1 Technical Specifications
ParameterValue
Adapter typeJack to Jack
Mounting typePanel Mount
Adapter seriesSMA to MCX
Fastening typeSnap-On, Threaded
Conversion typeBetween Series
Frequency - max6 GHz
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead
Operating temperature-65°C ~ 165°C
Body materialBrass
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
StyleStraight
PackageBulk
Impedance50 Ohms
Body finishNickel
Center genderFemale to Female
Mating cycles500
Center contact platingGold
Convert to (Adapter end)MCX Jack, Female Socket
Convert from (Adapter end)SMA Jack, Female Socket

Product details

The Amphenol RF AD-SMAJMCXJ-1 is a between-series adapter that converts an SMA jack interface to an MCX jack interface, both female sockets, in a straight body. It sits in the AD-SMA series of adapters and is designed for 50 Ohm systems, with a rated frequency range up to 6 GHz. The adapter carries an IP67 ingress protection rating, making it one of the few SMA-to-MCX adapters that can handle outdoor, washdown, or dust-exposed environments without a secondary enclosure.

Rated 50 Ohms, max frequency 6 GHz.

IP67 Sealing and Panel Mount Construction

IP67 rated, dust-tight and waterproof when mounted.

Mating and Termination — What Connects Where

SMA side threaded, MCX side snap-on. Both female sockets.

Frequently asked questions

Is the AD-SMAJMCXJ-1 suitable for 50 ohm systems?

Yes, the adapter is rated for 50 Ohm impedance, which is the standard for telecom, test equipment, and most wireless systems. It covers frequencies up to 6 GHz, so it works with Wi-Fi, cellular, GPS, and sub-6 GHz 5G NR bands.
