Amphenol AHDBM06-24-91SR-059
MPNAHDBM06-24-91SR-059
Active

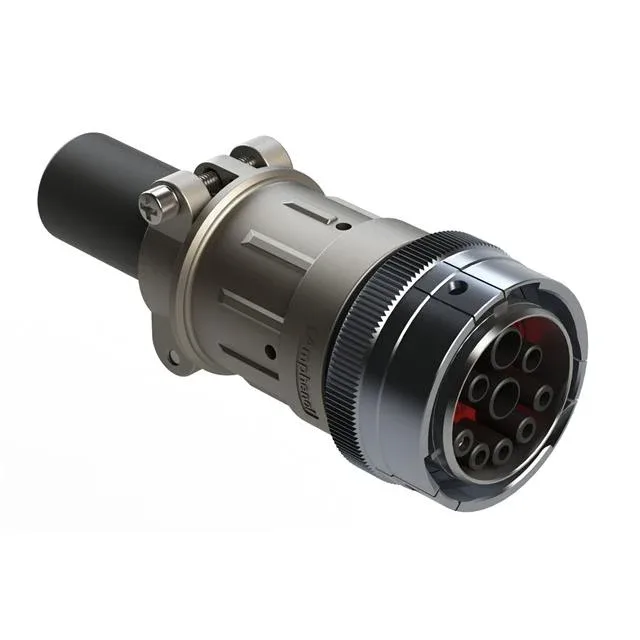

SIZE 24, 9 POSITION ISOBUS PLUG
$47.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuraMate™ AHDBM ISOBUS 91
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | DuraMate™ AHDBM ISOBUS 91 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -55°C ~ 125°C |
| Housing color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Thermoplastic |
| Primary material | Metal |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Includes | 2 pcs - 1 Connector, 1 Backshell |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact size | 8 (2), 12 (2), 16 (5) |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 9 |
| Shell size - insert | 24-91 |
