Amphenol AHDM04-24-23PT-059
MPNAHDM04-24-23PT-059
Active

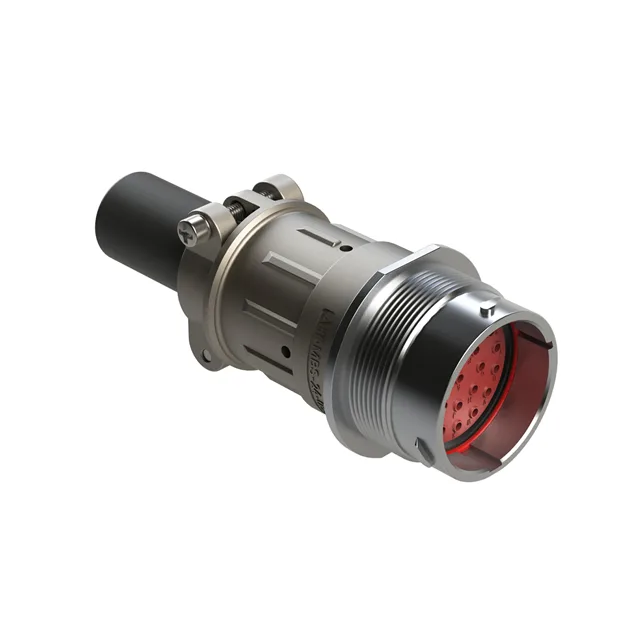

23 POSITION RECEPTACLE, PIN, SHE
$36.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuraMate™ AHDM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | DuraMate™ AHDM |
| Mounting | Free Hanging (In-Line); Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C ~ 125°C |
| Housing color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Thermoplastic |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Note | Contacts Not Included |
| Package | Box |
| Features | Backshell, Cable Clamp |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact size | 16 |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 23 |
| Shell size - insert | 24-23 |
