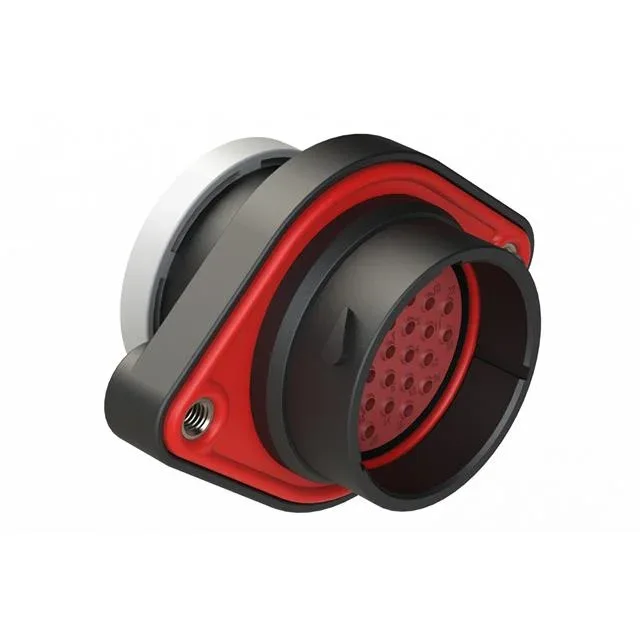

Amphenol AHDP02-24-31PT-BRA
MPNAHDP02-24-31PT-BRA
Active
31 POSITION PANEL MOUNT RECEPTAC
$14.38Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuraMate™ PanelMate™ AHDP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | DuraMate™ PanelMate™ AHDP |
| Mounting | Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Flange |
| Operating temperature | -55°C ~ 125°C |
| Housing color | Black |
| Shell material | Thermoplastic |
| Insert material | Thermoplastic |
| Primary material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Note | Contacts Not Included |
| Package | Box |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | Keyed |
| Contact size | 16 |
| Contact shape | Circular |
| Positions | 31 |
| Shell size - insert | 24-31 |
