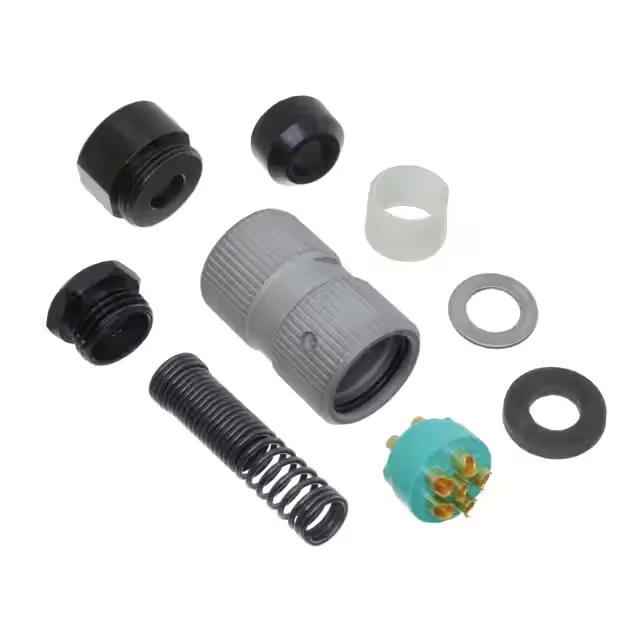

Amphenol AP-146M/3
MPNAP-146M/3
Active
CONN PLUG FMALE 6P GOLD SLDR CUP
$26.83Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMIL-DTL-55116, AP
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MIL-DTL-55116, AP |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Bayonet Lock |
| Voltage rating | 60V |
| Current rating | 0.5A |
| Cable opening | 0.320\" (8.13mm) |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Shell material | Neoprene and Stainless Steel |
| Insert material | Diallyl Phthalate (DAP) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Aluminum, Anodized |
| Package | Bulk |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio, Military, Video |
| Positions | 6 |
| Contact finish - mating | Gold |
