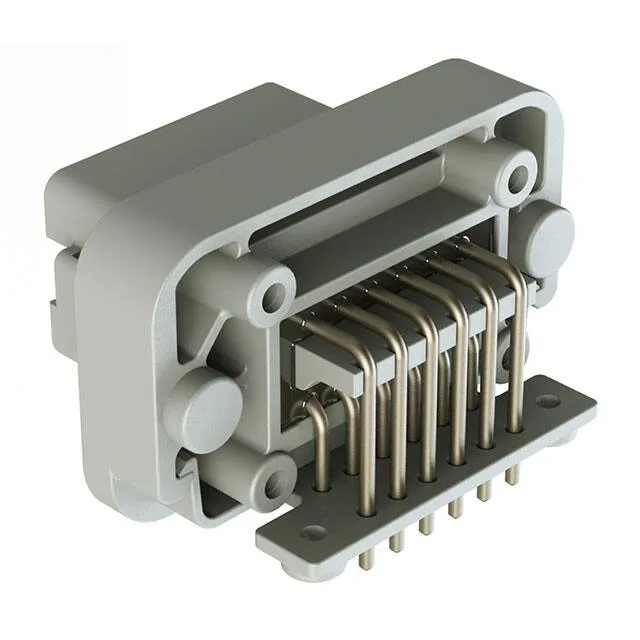

Amphenol AT13-12PA-BM17
MPNAT13-12PA-BM17
Active
CONN HEADER R/A 12POS
$18.03Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAT Series™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AT Series™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 13A |
| IP rating | IP67 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.390\" (35.30mm) |
All specifications
| Parameter | Value |
|---|---|
| Insulation material | Thermoplastic |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide, Mating Flange, Mounting Flange, Potting Wall |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 2 |
| Positions | 12 |
| Row spacing - mating | 0.250\" (6.35mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
