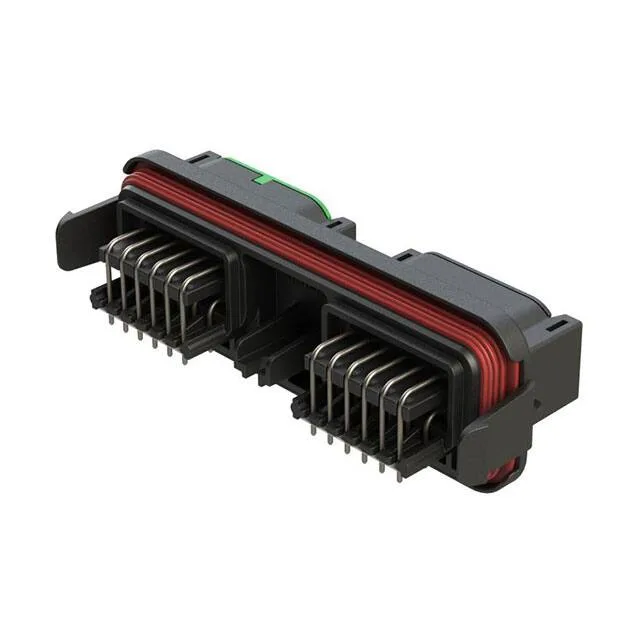

Amphenol ATM13-12PA-12PC-BM03
MPNATM13-12PA-12PC-BM03
Active
CONN HEADER R/A 12POS
$24.74Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesARMORIPX™ ATM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ARMORIPX™ ATM |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In; Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Current rating | 7.5A |
| IP rating | IP67 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.378\" (35.00mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 2 |
| Positions | 12, 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.112\" (2.84mm) |
| Contact finish - mating | Tin |
