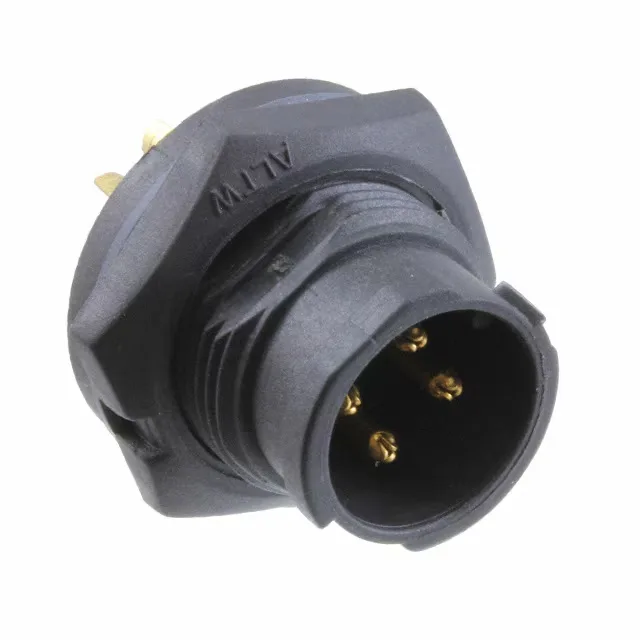

Amphenol BB-04PMMS-QC8001
MPNBB-04PMMS-QC8001
Active
CONN RCPT MALE 4P GOLD SLDR CUP
$7.13Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesX-Lok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | X-Lok |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 300VAC |
| Current rating | 10A |
| IP rating | IP68 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon, Glass Filled |
| Insert material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Positions | 4 (Data) |
| Shell size - insert | B |
| Contact finish - mating | Gold |
