Amphenol C01610E0120032
MPNC01610E0120032
Active

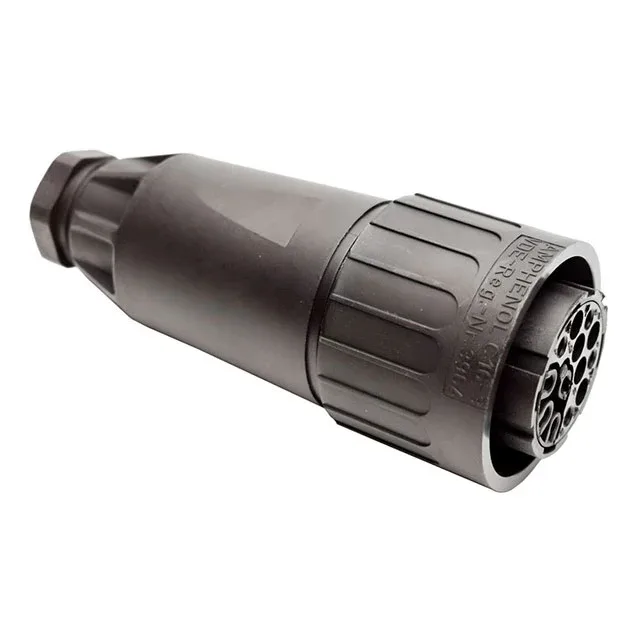

CONN PLUG HSG FMALE 13POS INLINE
$36.81Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Seriesecomate® C16
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | ecomate® C16 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP65 - Dust Tight, Water Resistant |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Backshell, Cable Clamp, Coupling Nut |
| Includes | 9 pcs - 1 Connector, 1 Backshell, 2 pc Cable Clamp, 1 Cable Nut, 1 Gasket, 2 Screws, 1 Washer |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact size | 1.6mm (9), 2.5mm (4) |
| Contact shape | Circular |
| Positions | 13 (12 + PE) |
| Shell size - insert | 2 |
