Amphenol C091 11D008 001 2
MPNC091 11D008 001 2
Active

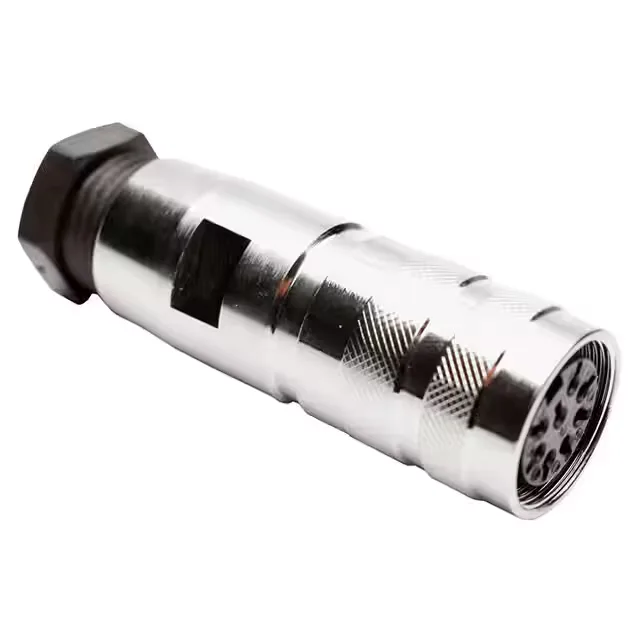

CONN PLUG HSG FMALE 8POS INLINE
$19.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC091D
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | C091D |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Threaded |
| IP rating | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -40°C ~ 100°C |
| Housing color | Silver |
| Shell material | Die Cast |
| Insert material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Includes | 11 pcs - 1 Connector, 1 Backshell, 2 pc Cable Clamp, 1 Cable Nut, 1 Gasket, 1 O-Ring, 2 Screws, 2 Washers |
| Shielding | Shielded |
| Orientation | Keyed |
| Contact size | 1.5mm |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 8 |
| Shell size - insert | M16-8 |
