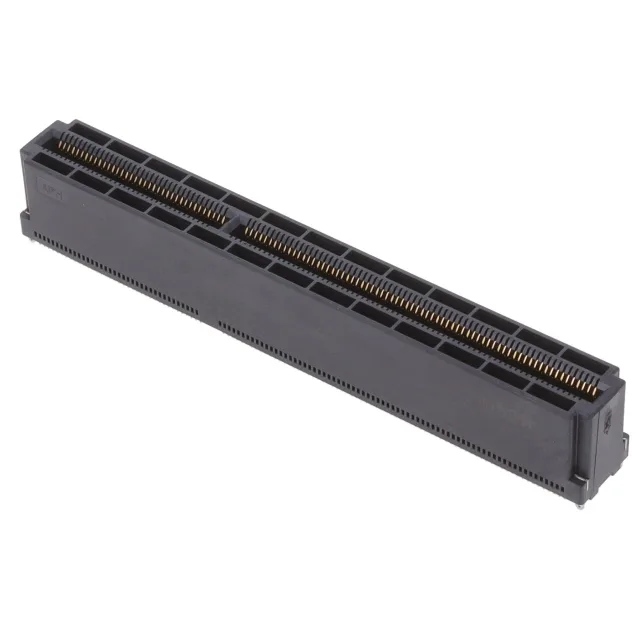

Amphenol CED014281112001
MPNCED014281112001
Active
CONN EDGE DUAL FML 428POS 0.031
$46.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCool Edge 0.80mm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Cool Edge 0.80mm |
| Card type | Non Specified - Dual Edge |
| Mounting | Surface Mount |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic |
| Pitch | 0.031\" (0.80mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Lock |
| Read out | Dual |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Card thickness | 0.093\" (2.36mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 428 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 214 |
