Amphenol FCI Delta D series, D-Sub plug, male pins, 9 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, 5A per contact, 300V, UL94 V-0, black PBT housing, steel shell with tin-nickel plating, board locks and grounding indents.
| Parameter | Value |
|---|---|
| Series | Delta D |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 5A per Contact |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Tin-Nickel Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 9 |
| Contact finish thickness | Flash |

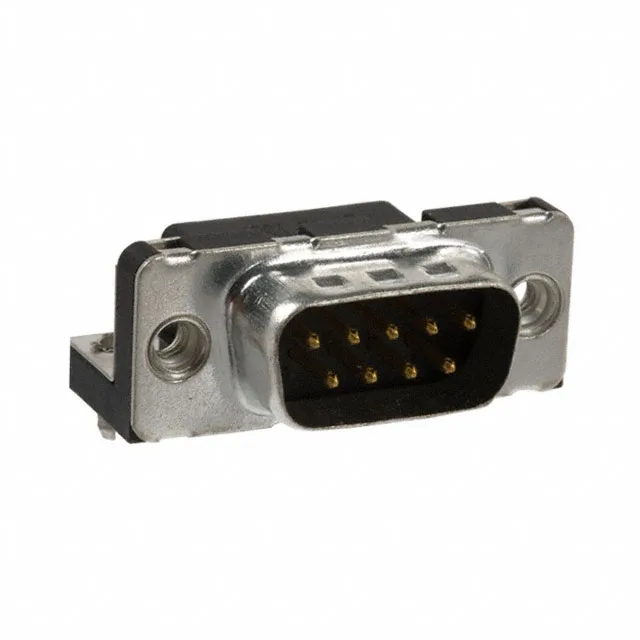

The Amphenol FCI D09P33E4GX00LF is a 9-position D-Sub plug from the Delta D series, configured as a right-angle through-hole male pin connector. Grounding indents in the shell bleed shield current before it reaches the signal pins.
The brass contacts carry a gold flash finish.
The flange features 4-40 threaded inserts for mating with the standard D-Sub receptacle's jackscrews.
The standard DE-9 footprint means any 9-pin D-Sub receptacle with the same shell size and 4-40 flange spacing will mate mechanically, but contact plating, board lock geometry, and backset spacing vary by manufacturer — confirm the BOM position against the mating half before specifying.
