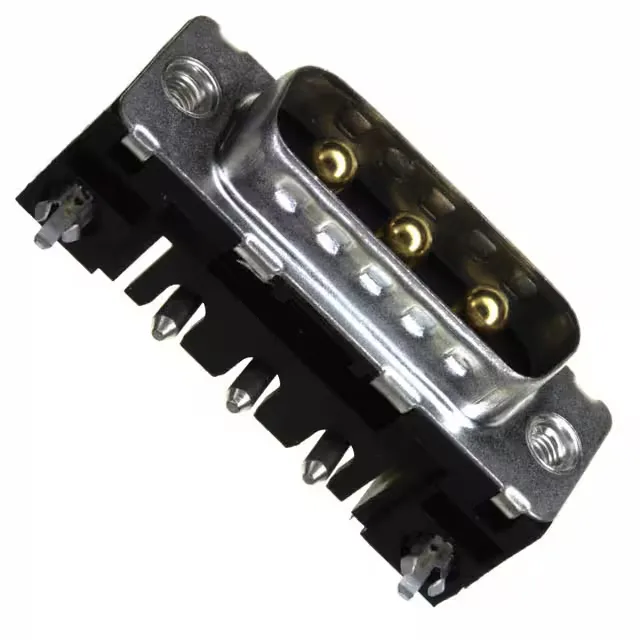

Amphenol Delta D D3W3P36A6GL08LF, D-Sub Combo Plug 3 Power Pos RA

MPND3W3P36A6GL08LF
Active

Amphenol Delta D series D-Sub combo plug, D3W3P36A6GL08LF, 3 power positions, single row, right-angle through-hole solder, 30 A, 300 V, gold-plated brass contacts 30.0 µin, nickel-plated steel shell, board lock and grounding indents, M3 flange, -55°C to 125°C, UL94 V-0, tray.

$4.29Ref. price · indicative, final on quote
D3W3P36A6GL08LF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

D3W3P36A6GL08LF Technical Specifications
ParameterValue
SeriesDelta D
GenderPower
Mounting typeThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating300V
Current rating30A
Shell size, connector layout2 (DA, A) - 3W3
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (M3)
Rows1
Backset spacing0.374\" (9.50mm)
Positions3 (Power)
Contact finish thickness30.0µin (0.76µm)

Product details

Combo D-Sub Power Plug — 3W3 Layout, 30 A per Contact

The D3W3P36A6GL08LF is a Delta D series D-Sub combo plug with 3 power positions in a single row, arranged in the 2 (DA, A) - 3W3 shell layout.

Right-Angle Through-Hole — Board Lock and M3 Flange

Right-angle through-hole termination with a backset spacing of 0.374" (9.50 mm) sets the connector body offset from the board edge — typical for panel-mount D-subs where the shell flange bolts to the chassis and the PCB sits parallel to the panel. M3 threaded inserts in the housing/shell flange provide the panel-mount point; the grounding indents in the steel shell bleed shield current to chassis ground before it reaches the signal path.

Mates with the matching Delta D 3W3 receptacle in the same shell size 2 (DA, A) layout. The M3 flange on this plug pairs with a corresponding M3 threaded insert on the receptacle housing.

Sibling Comparison — M3 vs 4-40 Flange Hardware

The D3W3P36A6GL08LF uses housing/shell M3 flange hardware. The sibling D3W3P36A6GV08LF shares the same 3W3 layout, 30 A rating, gold plating, and board lock but substitutes mating-side 4-40 female screwlocks. If your panel or mating receptacle is tooled for 4-40 jackscrews, the GV variant is the direct fit — the GL version here requires M3 hardware on both sides. Same positions, same current, same footprint; the flange feature is the selection gate.
