Delta D Power-Duty D-Sub Combo Plug

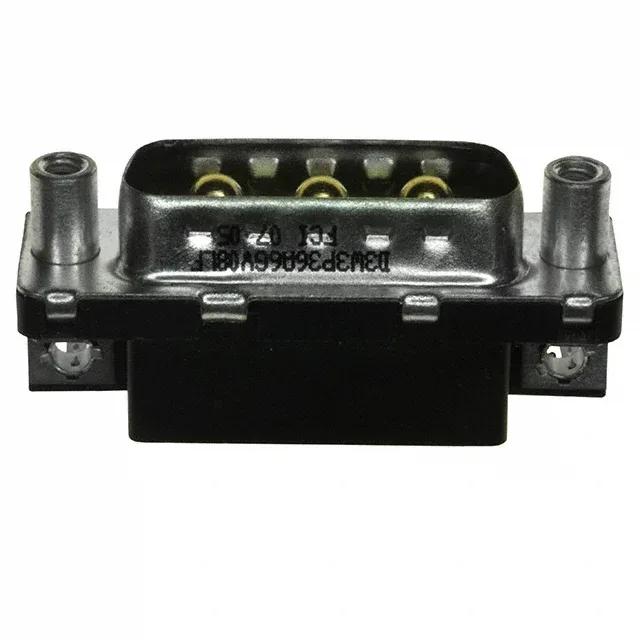

The Amphenol D3W3P36A6GV08LF is a 3-position (Power) D-Sub combo plug from the Delta D series, built for applications that need the mechanical latching of a D-Sub but with contacts sized for current, not signal density. Right-angle through-hole mounting with solder termination, a 0.374" backset spacing, and a 4-40 female screwlock on the mating side. The single row of power contacts, each rated 30 A at 300 V, makes this a compact power interconnect for industrial PSUs, motor drives, or battery management boards where a standard-density D-Sub would overheat.
What the 30 A Rating Means for the Fit
30 A per contact is bus-level current for a D-Sub form factor. The 300 V rating gives headroom for industrial control circuits.
Board Lock and Grounding Details
The D3W3P36A6GL08LF shares the same 3 (Power) positions, 30 A rating, 30.0µin gold plating, and right-angle solder termination — the only difference is the flange feature: the GV08LF uses a 4-40 female screwlock on the mating side, while the GL08LF uses housing/shell screwlocks (M3). If your panel or mating half expects a 4-40 threaded insert, the GV08LF drops in without adapter hardware; the GL08LF would require a different jack-screw or a thread adapter.
