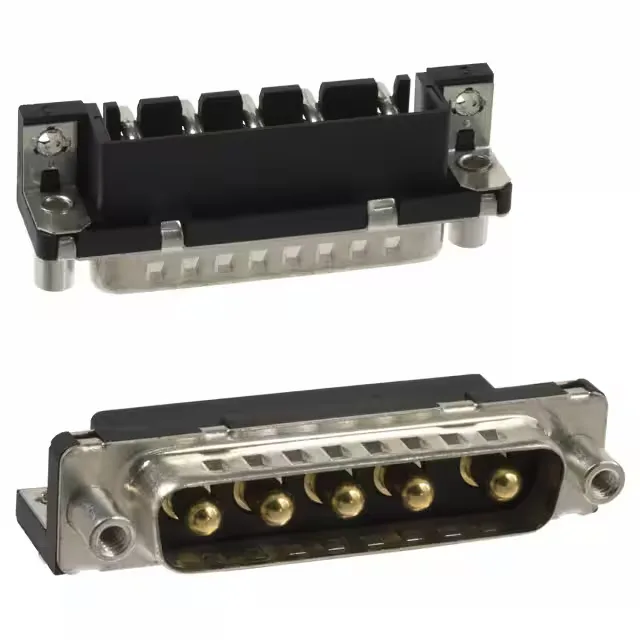

Amphenol D5W5P36A6GV08LF

Amphenol Delta D D5W5P36A6GV08LF, D-Sub Combo Plug, 5 Power Pos, 30A

MPND5W5P36A6GV08LF
Active

Amphenol Delta D D-Sub Combo plug, D5W5P36A6GV08LF, 5 power positions, 1 row, right-angle through-hole solder, 30A, 300V, gold 30µin contacts, 4-40 female screwlock, board lock, grounding indents, tray.

$8.94Ref. price · indicative, final on quote
Amphenol D5W5P36A6GV08LF datasheet (PDF)
RoHSRoHS Compliant
SeriesDelta D
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

D5W5P36A6GV08LF key specifications
ParameterValue
SeriesDelta D
TypePower
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating300V
Current rating30A
Shell size, connector layout3 (DB, B) - 5W5
Operating temperature-55°C ~ 125°C
ColorBlack
Contact materialBrass
Dielectric materialThermoplastic
Shell material, finishSteel, Nickel Plated

All specifications

D5W5P36A6GV08LF additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents, Mounting Brackets
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows1
Backset spacing0.374\" (9.50mm)
Positions5 (Power)
Contact finish thickness30.0µin (0.76µm)

Product details

What the 30A rating means for your build

The D5W5P36A6GV08LF: 30A per contact is the headline number, and it's not a derated signal figure — this connector is sized for power distribution inside the enclosure. The 300V rating gives enough creepage for the 5W5 shell size without forcing an oversized footprint.

Mounting and retention hardware

The grounding indents on the shell mate with the receptacle face to bleed shield current before it reaches the signal path.

How it compares to the D5W5P36A6GX08LF

The D5W5P36A6GX08LF is the same connector in every respect — same 5 power positions, same 30A rating, same 30.0µin gold, same backset, same board locks — except the flange feature is a housing/shell 4-40 instead of the female screwlock on the GV variant. If your panel or mating half expects a female screwlock on the plug side, the GV is the correct pick; if the hardware is on the receptacle side, the GX is the swap. Everything else drops in identically.

Frequently asked questions

Will D5W5P36A6GV08LF drop into a panel that was specified around D5W5P36A6GX08LF without rewiring?

Yes, the two parts are identical in every dimension and rating except the flange feature. The GV has a female screwlock (4-40) on the mating side; the GX has a housing/shell 4-40. The board footprint, backset spacing, and contact layout are the same, so no rewiring or board change is needed — just verify which jack-screw arrangement your mating half expects.

Where can I buy D5W5P36A6GV08LF and how do I get a price?

This part is sourced to order through independent distribution. Submit an RFQ against your BOM quantity for current pricing and availability — no stock-holding claim is made here, but the active lifecycle means it remains a standard procurement line.
