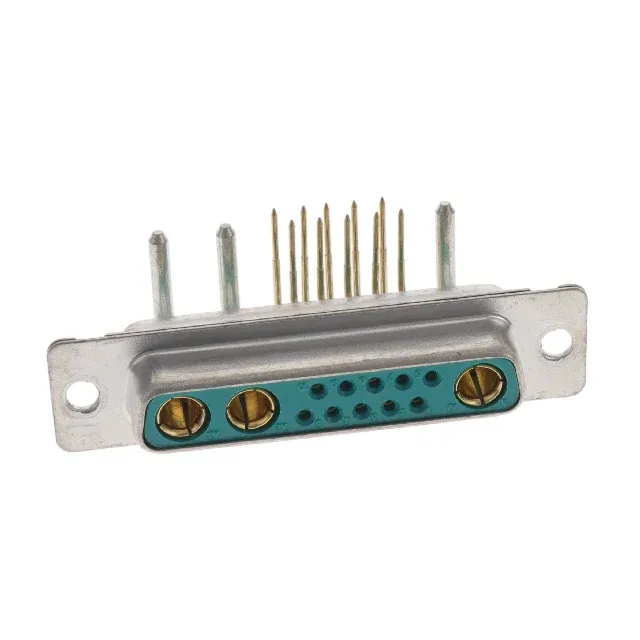

Amphenol DB13W3S500A30LF
MPNDB13W3S500A30LF
Active
CONN D-SUB RCPT 13POS R/A SLDR
$19.17Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DW |
| Type | Signal and Power |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 300V |
| Current rating | 7.5A, 30A |
| Shell size, connector layout | 3 (DB, B) - 13C3, 13W3 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.406\" (10.30mm) |
| Positions | 13 (10 + 3 Power) |
