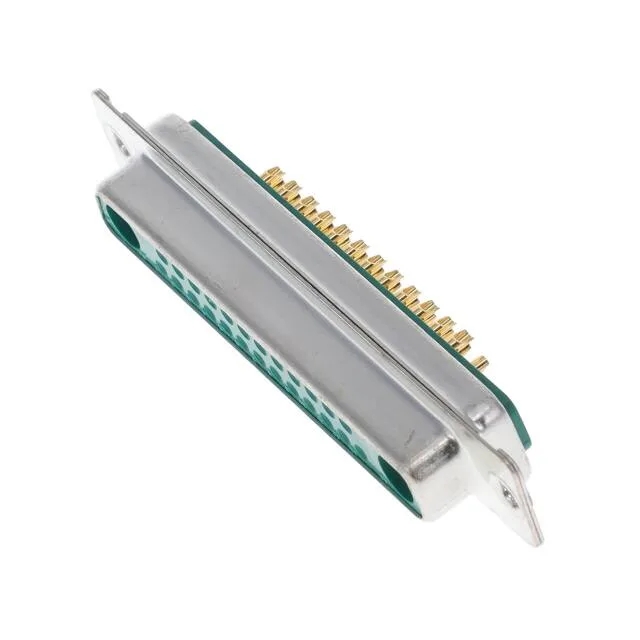

Amphenol DC27W2SA00LF
MPNDC27W2SA00LF
Active
CONN D-SUB RCPT 27POS SLDR CUP
$21.64Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DW |
| Type | Signal and Power (Not Included) |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 300V |
| Current rating | 7.5A per Contact |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 4 (DC, C) - 27W2 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 27 (25 + 2 Power) |
