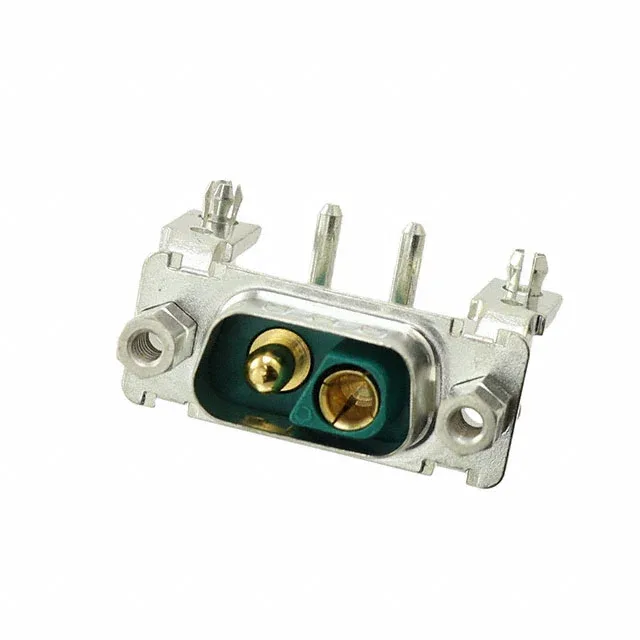

The Amphenol ICC DEV2V2P500G30LF is a DW series D-Sub Combo plug with 2 power positions, single-row layout, and a shell size of 1 (DE, E) - 2V2, 2W2C. It carries 30 A per contact at 300 V, making it a dedicated power interconnect for board-edge or panel-mount applications where a standard signal D-Sub would be undersized.
Ratings and construction
The 30 A rating per contact is the headline figure here — that is bus-level current for a D-Sub footprint, sized for a power rail rather than signal duty.
This is a right-angle through-hole solder part — the 0.458 inch backset spacing positions the mating face away from the PCB edge, giving clearance for the cable bend radius or a mating hood. The flange uses a female screwlock (4-40) on the mating side, so the mating receptacle needs the corresponding male screwlock or a locking mechanism that engages the 4-40 thread.
Comparison with DEL2V2P93C5G40LF
The DEL2V2P93C5G40LF shares the same shell size, 2 power positions, 300 V rating, and gold-plated contacts. It uses press-fit termination, carries 40 A, and has a board-side M3 flange.
