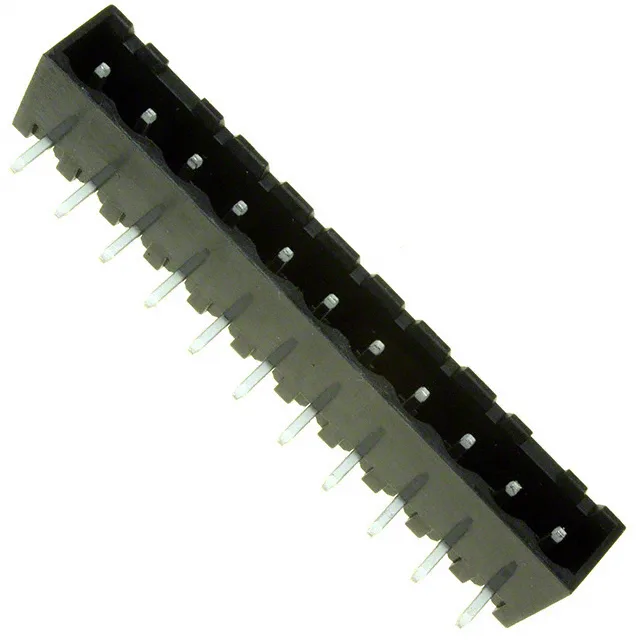

Amphenol ELFH11210
MPNELFH11210
Active
$1.8800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | ELFH |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.319\" (8.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Positions | 11 |
| Positions per level | 11 |
| Contact mating finish | Tin |
