60-Position 0.50mm Pitch — What It Buys the Board Layout

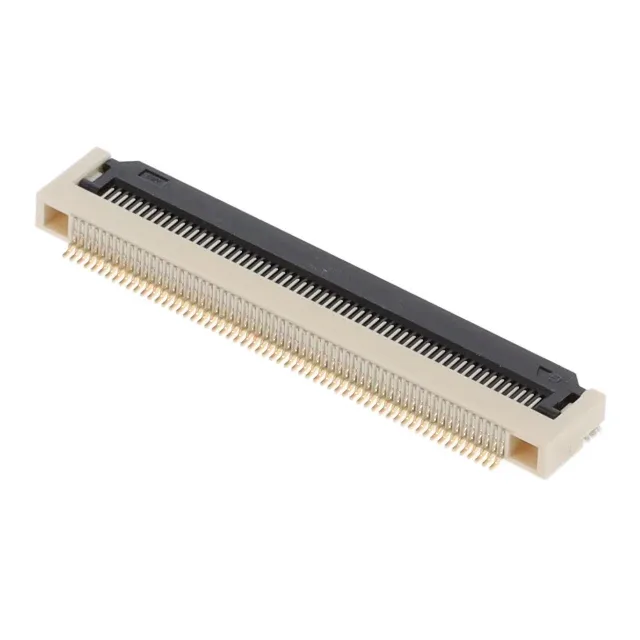

The F31L-1A7H1-11060: The 60 positions at 0.50mm pitch pack a dense signal interface into a right-angle SMT footprint — the 2.54mm height above board keeps the z-height tight for mezzanine or board-edge routing. The ZIF actuation with slide lock means the FFC inserts without insertion force, then the slide locks the cable in place — no risk of backing out under vibration, but the 30 mating cycles limit means this is a set-and-forget interconnect, not a frequent-disconnect port.
Current, Plating, and Mating Cycles — Field-Service Reality
Rated 0.5A per contact with 1.97µin gold over phosphor bronze — the gold is thin, enough for the 30-cycle rating in a clean environment, but in a corrosive or high-vibration setting the contact resistance will climb faster than a thicker gold layer.
Position-Count Variants — Cross-Shop the Series
The F31L-1A7H1 series shares the same 0.50mm pitch, 2.54mm height, gold plating, and ZIF slide lock across 41, 50, 60, and 70 positions — the 60-position F31L-1A7H1-11060 sits between the 50-position F31L-1A7H1-11050 and the 70-position F31L-1A7H1-11070.
RoHS compliant, UL94 V-0 rated LCP housing, halogen-free actuator material.
