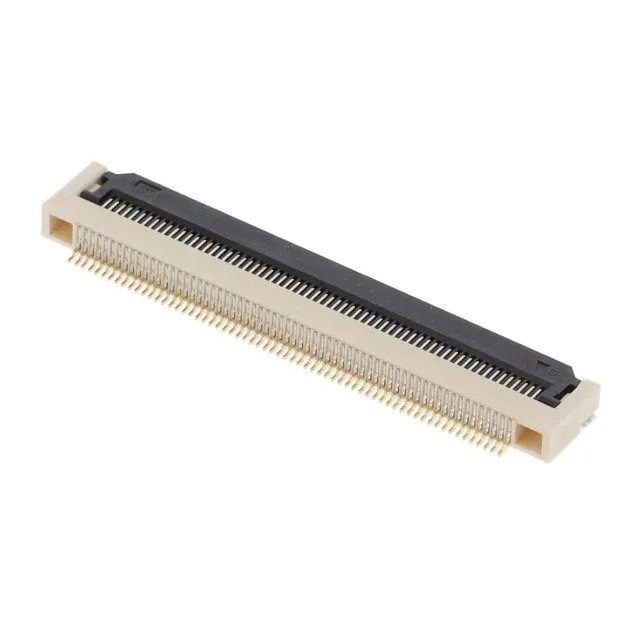

F31L-1A7H1-11064 — Amphenol product photo
Amphenol

F31L-1A7H1-11064 Amphenol ICC (FCI) Aorora F31L 64-Position

MPNF31L-1A7H1-11064
Active

Amphenol ICC (FCI) Aorora F31L FFC/FPC connector, 64 positions, 0.020" (0.50mm) pitch, right-angle SMT, ZIF slide lock, gold-plated contacts, 0.5A, 50V, UL94 V-0 LCP housing.

$1.3800Ref. price · indicative, final on quote
F31L-1A7H1-11064 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

F31L-1A7H1-11064 Technical Specifications
ParameterValue
SeriesAorora F31L
Mounting typeSurface Mount, Right Angle
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C~105°C
Housing colorNatural
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialPolyamide (PA9T), Nylon 9T, Halogen Free
Height above board0.100\" (2.54mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles30
Contact finishGold
Locking featureSlide Lock
Positions64
Contact finish thickness1.97µin (0.050µm)

Product details

64-Position 0.50mm Pitch FFC/FPC Connector – Aorora F31L

The F31L-1A7H1-11064: This Amphenol ICC (FCI) Aorora F31L connector is a 64-position, 0.020" (0.50mm) pitch FFC/FPC connector with a right-angle SMT termination and a ZIF slide lock actuator. It accepts FFC or FPC cables with bottom contacts and is rated for 0.5A per contact at 50V. The housing is natural LCP rated UL94 V-0, and the actuator is halogen-free PA9T nylon.

The 0.50 mm pitch sets a tight board footprint — the 64 positions require careful fan-out on the PCB, typically a 4-layer board for signal escape.

The ZIF slide lock mechanism — no insertion force on the FFC — allows the cable to be inserted with the actuator open, then locked by sliding the actuator closed. This is a bottom-contact design, meaning the FPC pads face down toward the PCB. Mating cycle life is 30 cycles, which is adequate for a single-assembly harness but not for frequent reconnection in the field.

Frequently asked questions

What is the pitch and position count of F31L-1A7H1-11064?

The pitch is 0.020" (0.50mm) and the connector has 64 positions. This is a high-density FFC/FPC connector suited for compact board-to-flex interconnects.
