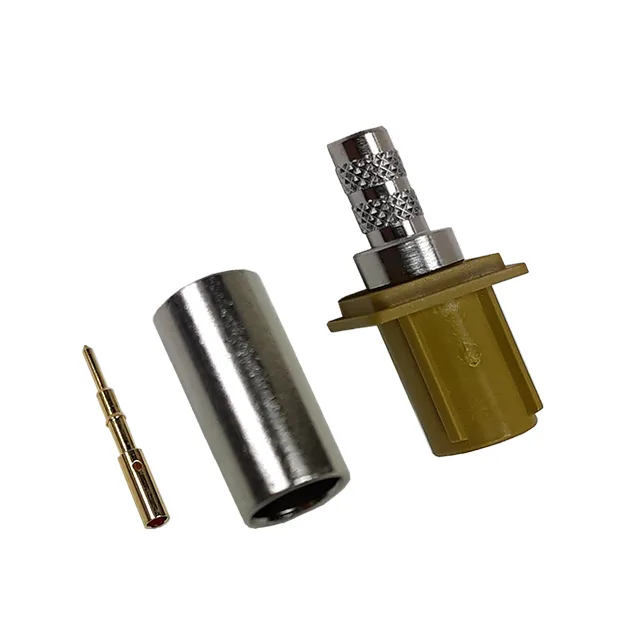

FA1-NKSP-C04-1 — Amphenol product photo
Amphenol

Amphenol RF FA1-NKSP-C04-1 SMB Fakra Plug, 50 Ohm, 4 GHz

MPNFA1-NKSP-C04-1
Active

Amphenol RF FA1-NKSP-C04-1 SMB Fakra plug, male pin, 50 Ohm, 4 GHz max, 0.3 dB insertion loss, 100 mating cycles, crimp termination, panel mount, RG-58 cable group.

$2.8000Ref. price · indicative, final on quote
FA1-NKSP-C04-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FA1-NKSP-C04-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typePlug, Male Pin
Fastening typeLocking Ramp
Frequency - max4 GHz
Mounting featureFlange
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-40°C~100°C
Body materialBrass
Housing colorCurry
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
FeaturesCode K
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles100
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

SMB Fakra Plug for RG-58-Class Coax

The body finish is nickel over brass, and the dielectric is PTFE for stable impedance up to the rated frequency. This plug is intended for field-termination onto RG-58, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, or Belden 9907 cables. The panel-mount flange with a Code K keying feature ensures correct orientation in multi-port applications.

Rated at 50 Ohm characteristic impedance with a maximum operating frequency of 4 GHz, the FA1-NKSP-C04-1 delivers an insertion loss of 0.3 dB across the band. Cable compatibility is explicitly listed for RG-58 variants, LMR-195, and several Belden types — the crimp ferrule and centre contact dimensions are matched to the 0.195-inch (nominal) dielectric diameter of these cables. For builds using a cable not on the list, verify the dielectric OD and braid coverage before committing to this plug.

Frequently asked questions

Is FA1-NKSP-C04-1 compatible with RG-58 cable?

Yes, the FA1-NKSP-C04-1 is listed as compatible with RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, and Belden 9907 cables. The crimp termination is designed for the 0.195-inch nominal dielectric diameter of these cables.
