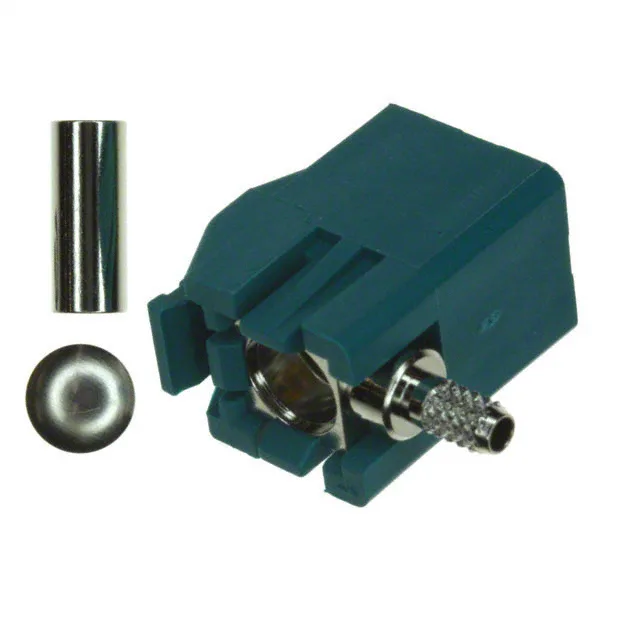

FA1-NZRJ-C01-0 — Amphenol product photo
Amphenol

FA1-NZRJ-C01-0 SMB Fakra Jack, 50 Ohm, 6 GHz, RG-174

MPNFA1-NZRJ-C01-0
Active

Amphenol RF FA1-NZRJ-C01-0, SMB Fakra jack female socket, 50 Ohm, 6 GHz, 0.3 dB insertion loss, right-angle, crimp shield, solder contact, for RG-174/188/316/LMR-100.

$4.8000Ref. price · indicative, final on quote
FA1-NZRJ-C01-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FA1-NZRJ-C01-0 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeJack, Female Socket
Fastening typeLatch Lock
Frequency - max6 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-40°C~100°C
Body materialBrass
Housing colorBlue, Water
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesCode Z
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles100
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The FA1-NZRJ-C01-0: The latch lock keeps the mated pair secure under vibration — common in automotive antenna and telematics harnesses where the Fakra keying prevents a mismatch.

This jack is designed for a specific cable group: RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174. The shield termination is crimp — the ferrule squeezes the braid against the body — and the center contact is soldered to the conductor.

RF Performance and Durability

Rated for 100 mating cycles — typical for a field-serviceable RF connector — with a specified insertion loss of 0.3 dB across the band.

Frequently asked questions

Is FA1-NZRJ-C01-0 compatible with RG-174 cable?

Yes, the FA1-NZRJ-C01-0 is designed for RG-174, along with RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174.
