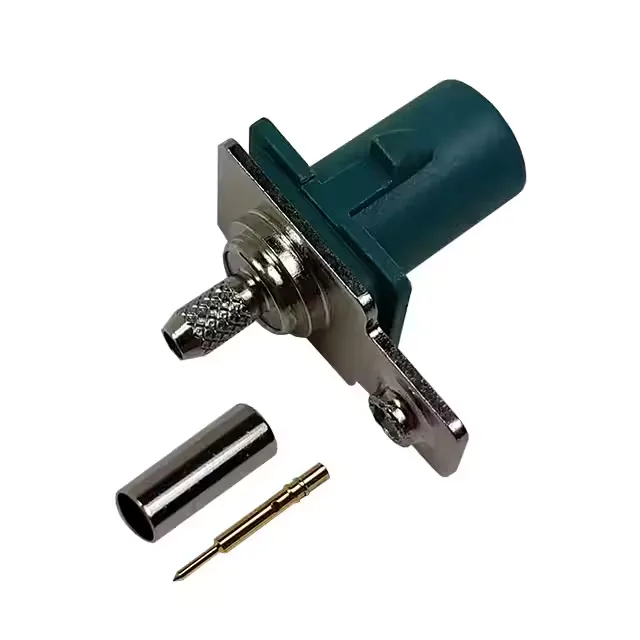

FA1-NZSP-C01-0 — Amphenol product photo
Amphenol

FA1-NZSP-C01-0 Fakra Plug, 50 Ohm, 4 GHz, Panel Mount

MPNFA1-NZSP-C01-0
Active

Amphenol RF FA1-NZSP Fakra SMB plug, male pin, 50 Ohm, 4 GHz, 0.3 dB insertion loss, panel mount with flange, locking ramp, crimp termination, gold-plated center contact, includes connector + contact + ferrule, Bulk.

$3.6600Ref. price · indicative, final on quote
FA1-NZSP-C01-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FA1-NZSP-C01-0 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typePlug, Male Pin
Fastening typeLocking Ramp
Frequency - max4 GHz
Mounting featureFlange
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-40°C~100°C
Body materialBrass
Housing colorBlue, Water
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
FeaturesCode Z
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles100
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The FA1-NZSP-C01-0 is a Fakra-coded SMB plug from Amphenol RF's FA1-NZSP series, terminated with a male pin and designed for 50 Ohm coax cable assemblies.

This plug accepts RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174 coax cables. The shield termination uses a crimp ferrule (included) for a gas-tight connection to the braid.

Panel Mounting and Mating

The connector mounts to a panel via a flange — the flange provides a sealing surface for the gasket and mechanical retention. The blue/water housing color identifies this as a Code Z keyed variant, so it only mates with a Code Z receptacle — no risk of swapping with a GPS or SDARS connector in the same harness bundle. Rated for 100 mating cycles, enough for production assembly and occasional field service.

Frequently asked questions

What cables are compatible with FA1-NZSP-C01-0?

The FA1-NZSP-C01-0 is compatible with RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 coax cables.
