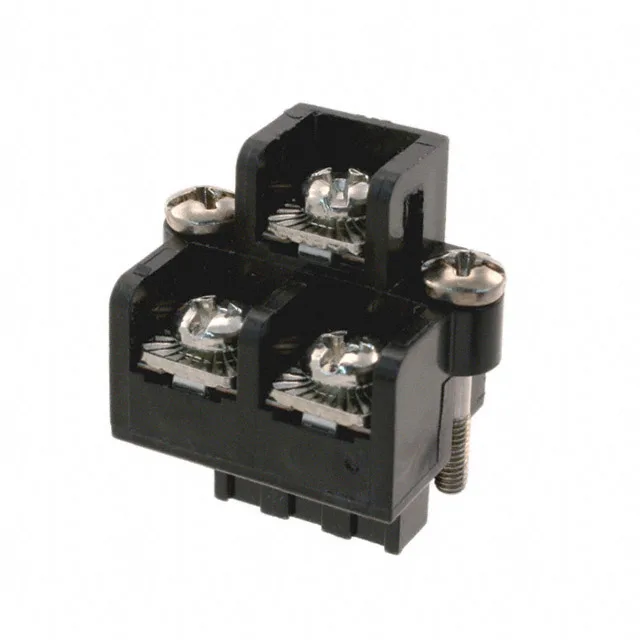

Amphenol FXPT03200E
MPNFXPT03200E
Active
$2.7900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | FXP FlexiPlug® |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 7.87mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyphenylene Oxide (PPO) |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.690\" (17.53mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Torque - screw | 1.13 Nm (10.0 Lb-In) |
| Number of levels | 2 |
| Termination style | Screw with Captive Plate |
| Positions | 3 |
| Positions per level | 1, 2 |
| Contact mating finish | Tin |
