$4.4280Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | FXP FlexiPlug® |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 7.87mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyphenylene Oxide (PPO) |
| Insulation height | 0.690\" (17.53mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Torque - screw | 1.13 Nm (10.0 Lb-In) |
| Number of levels | 2 |
| Termination style | Screw with Captive Plate |
| Positions | 7 |
| Positions per level | 3, 4 |
| Contact mating finish | Tin |
Sourcing this connector

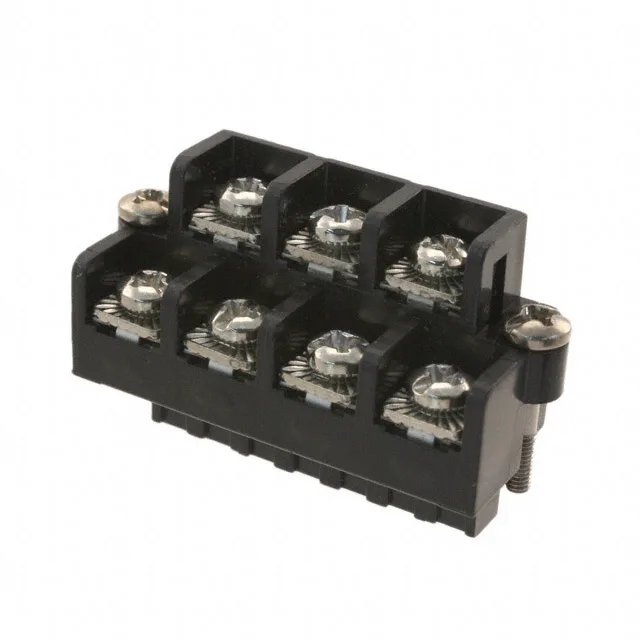

Amphenol FXPT07200E is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Amphenol and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
