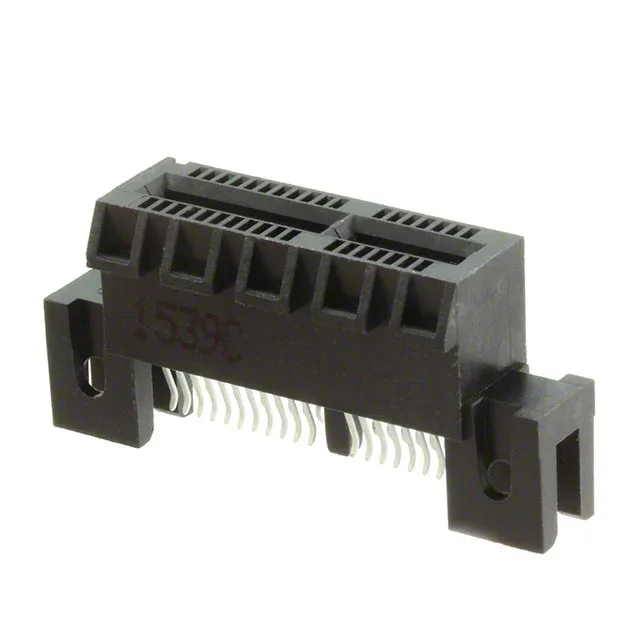

Amphenol G630H3602247EU
MPNG630H3602247EU
Active
CONN PCI EXP FMALE 36POS 0.039
$2.1Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesG630H
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G630H |
| Card type | PCI Express™ |
| Mounting | Board Edge, Straddle Mount |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Polyamide (PA9T), Nylon 9T |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Card Extender, Locking Ramp |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Flange feature | Straddle Mount Opening, Unthreaded, 0.079\" (2.00mm) |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | Flash |
