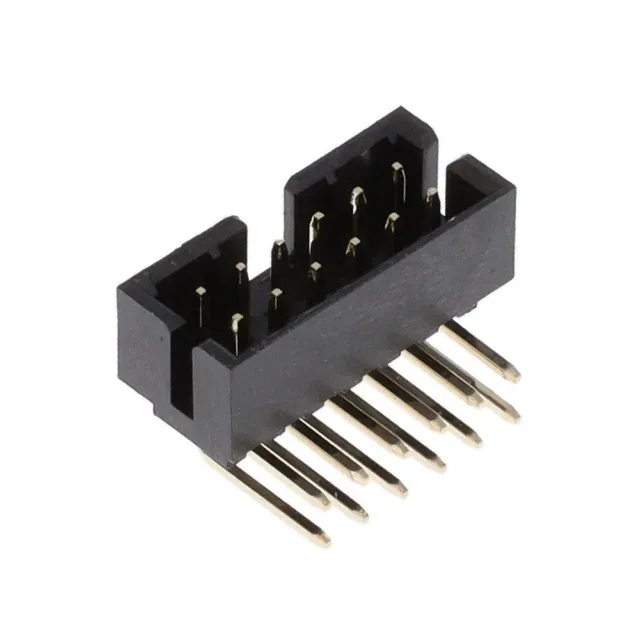

Amphenol G8231220YBEU
MPNG8231220YBEU
Active
BOX HEADER 2.0MM PITCH R/A DIP,2
$0.6300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesG823
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G823 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VDC |
| Current rating | 1.5A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.110\" (2.80mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
