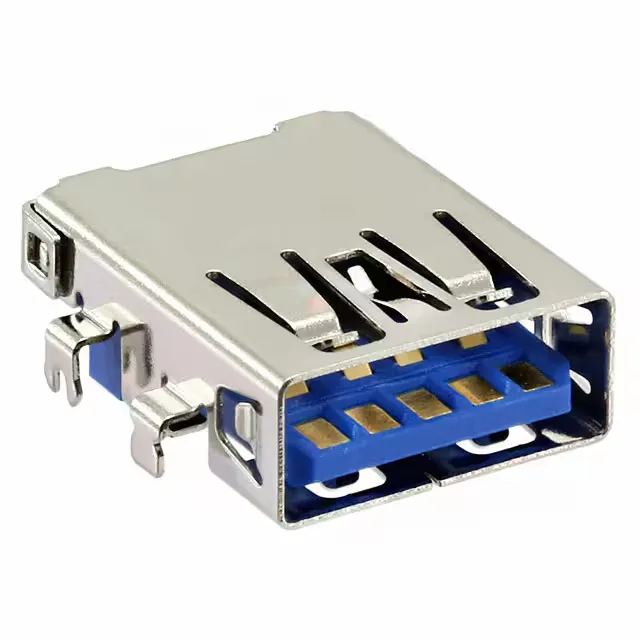

Amphenol ICC GSB4 USB-A receptacle, order code GSB411B34HR, 9 contacts, single port, USB 3.2 Gen 2, shielded, gold-plated contacts, right-angle through-hole, board lock, solder termination.
| Parameter | Value |
|---|---|
| Series | GSB4 |
| Mounting type | Board Edge, Cutout; Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 9 |
| Mounting feature | Horizontal, Mid Mount, Reverse |
| Insulation color | Blue |
| Shell (Shielding material) | Steel, Stainless (SUS) |
| Material flammability rating | UL94 HB |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock, Solder Retention |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The GSB411B34HR is the 9-contact USB-A receptacle in Amphenol ICC's GSB4 series, supporting USB 3.2 Gen 2 (10 Gbps) signalling. It mounts right-angle through-hole with a board lock and solder retention features, and carries a shielded steel shell for EMI containment.
Gold-plated contacts are rated for 5000 mating cycles, supporting repeated connect-disconnect duty in equipment access panels or test fixtures.
The GSB411B34HR is a USB-A (USB TYPE-A) receptacle.
The receptacle is specified for USB 3.2 Gen 2 (also known as USB 3.1 Gen 2 or Superspeed+), supporting 10 Gbps data transfer.
