Amphenol HFW7R-2STE1LF — FFC / FPC & Ribbon Connectors

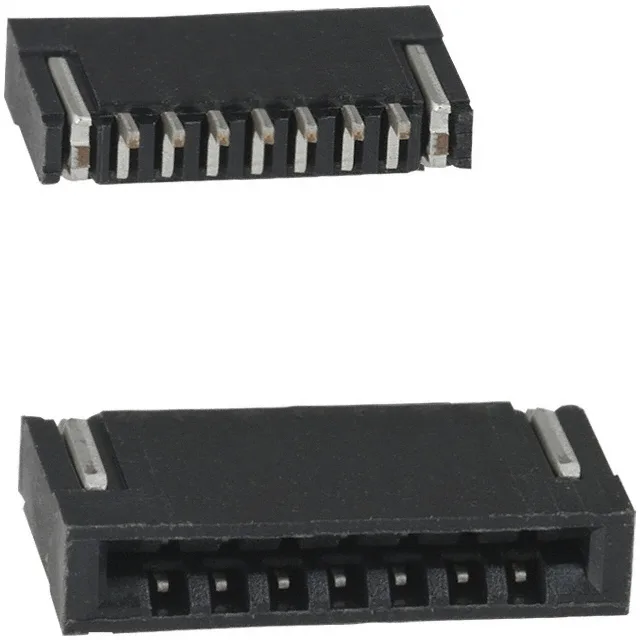

HFW7R-2STE1LF Amphenol ICC FFC/FPC 7-Pos 1.00mm

MPNHFW7R-2STE1LF
Obsolete

Amphenol ICC (FCI) HFW-R FFC, FPC connector, order code HFW7R-2STE1LF, 7 positions, 1.00 mm pitch, tin-plated contacts, surface-mount right-angle, solder termination, 1 A, 100 V.

$0.5200Ref. price · indicative, final on quote
Amphenol HFW7R-2STE1LF datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

HFW7R-2STE1LF key specifications
ParameterValue
SeriesHFW-R
MountingSurface Mount, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T, Glass Filled
Height above board0.075\" (1.90mm)

All specifications

HFW7R-2STE1LF additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
TerminationSolder
Mating cycles30
Contact finishTin
FFC, FCB thickness0.30mm
Positions7

Product details

7-position FFC/FPC, 1.00 mm pitch, SMT right-angle

The HFW7R-2STE1LF is the 7-circuit member of Amphenol ICC's HFW-R FFC/FPC connector series, terminated by solder to the board in a surface-mount right-angle orientation. Tin-plated phosphor bronze contacts are rated 1 A per circuit at 100 V; the connector accepts 0.30 mm thick FFC or FPC with straight or tapered cable ends.

Obsolete — sourcing via surplus channels

Available through independent surplus distribution; quantities are lot-specific and confirmed at RFQ.

Frequently asked questions

What FFC thickness does HFW7R-2STE1LF accept?

The connector accepts 0.30 mm thick FFC or FPC with straight or tapered cable ends.
