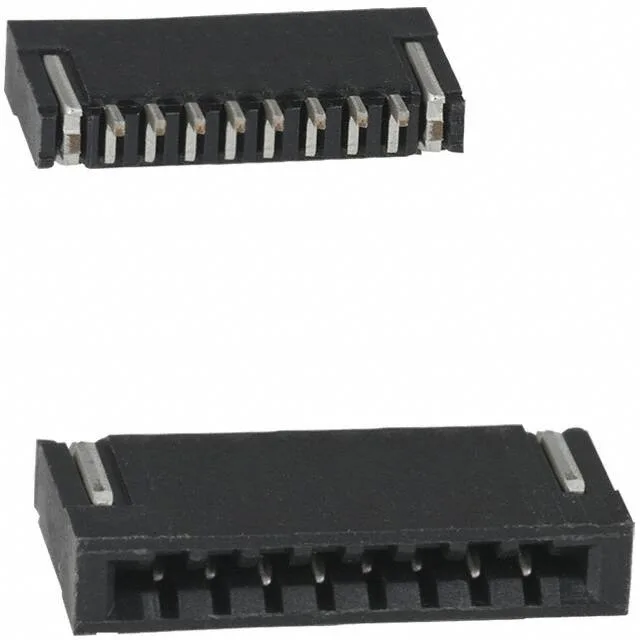

Amphenol HFW8R-1STE1LF
MPNHFW8R-1STE1LF
Obsolete
$0.3100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight or Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Height above board | 0.075\" (1.90mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Mating cycles | 30 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 8 |
