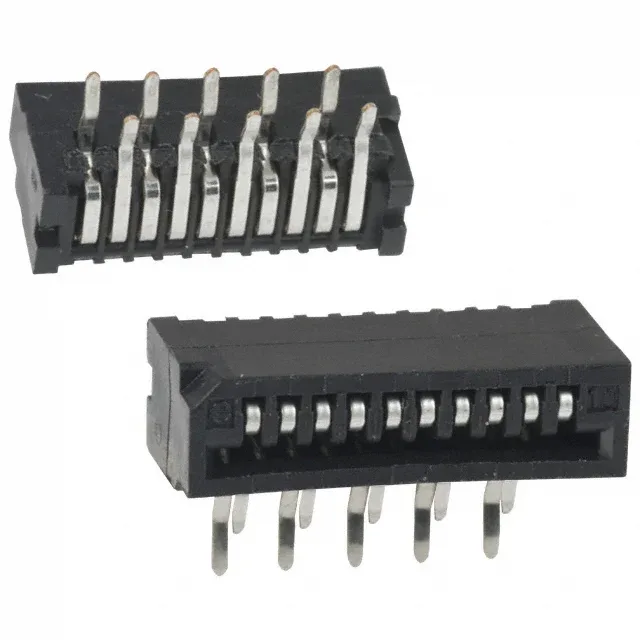

Amphenol HLW10R-2C7LF
MPNHLW10R-2C7LF
Active
CONN FFC FPC TOP 10POS 1MM R/A
$0.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHLW-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HLW-R |
| Mounting | Through Hole, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 85°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.154\" (3.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tray |
| Termination | Kinked Pin |
| Mating cycles | 30 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 10 |
