Amphenol HLW17S-2C7LF
MPNHLW17S-2C7LF
Active

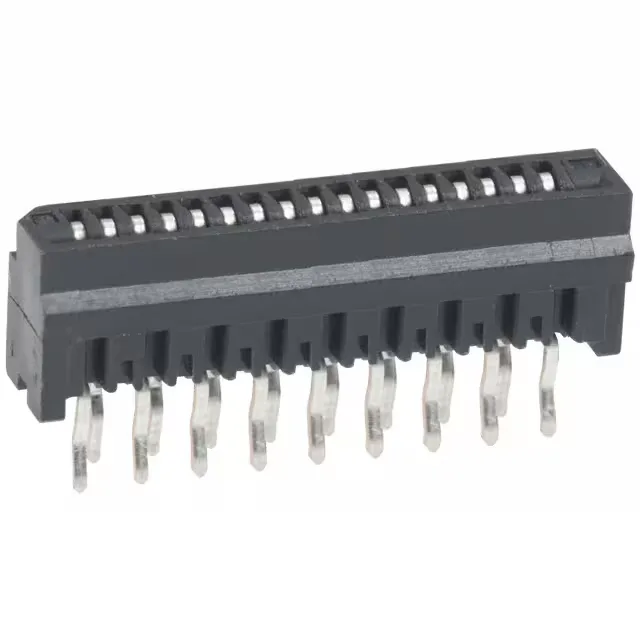

CONN FFC FPC VERT 17POS 1MM PCB
$0.23Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHLW-S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HLW-S |
| Mounting | Through Hole |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height above board | 0.232\" (5.90mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.039\" (1.00mm) |
| Package | Tray |
| Termination | Kinked Pin |
| Mating cycles | 30 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.33mm |
| Positions | 17 |
