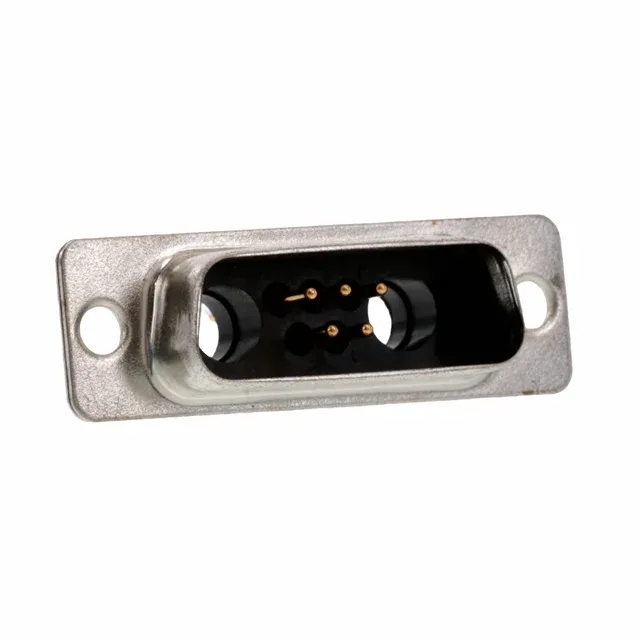

Amphenol L177TWA7W2P
MPNL177TWA7W2P
Active
CONN D-SUB PLUG 7POS PNL MNT
$7.3Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TW |
| Type | Signal and Coax or Power (Not Included) |
| Mounting | Panel Mount |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 7.5A |
| Contact form | Machined |
| Shell size, connector layout | 2 (DA, A) - 7W2 |
| Operating temperature | -55°C ~ 155°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Bag |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 7 (5 + 2 Coax or Power) |
| Contact finish thickness | 30.0µin (0.76µm) |
