Amphenol L717SDCH37P
MPNL717SDCH37P
Active

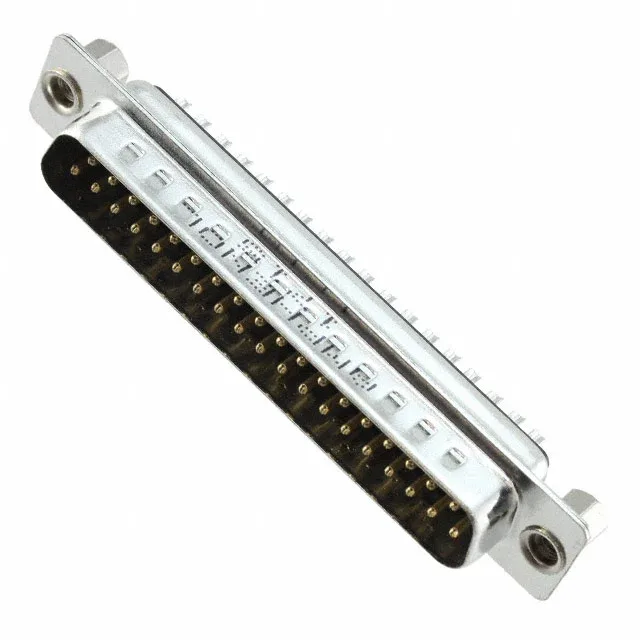

CONN D-SUB PLUG 37POS SLDR CUP
$2.21Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SD |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Voltage rating | 250V |
| Current rating | 3A |
| Contact form | Stamped |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 4 (DC, C) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40) |
| Rows | 2 |
| Positions | 37 |
| Contact finish thickness | Flash |
