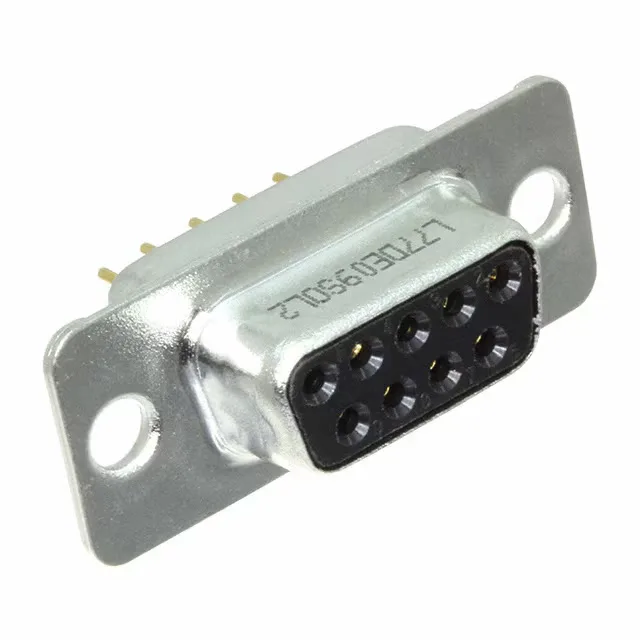

Amphenol L77DE09SOL2
MPNL77DE09SOL2
Active
CONN D-SUB RCPT 9POS VERT SLDR
$6.79Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | D |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 300V |
| Current rating | 7.5A |
| Contact form | Machined |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 8.00µin (0.203µm) |
