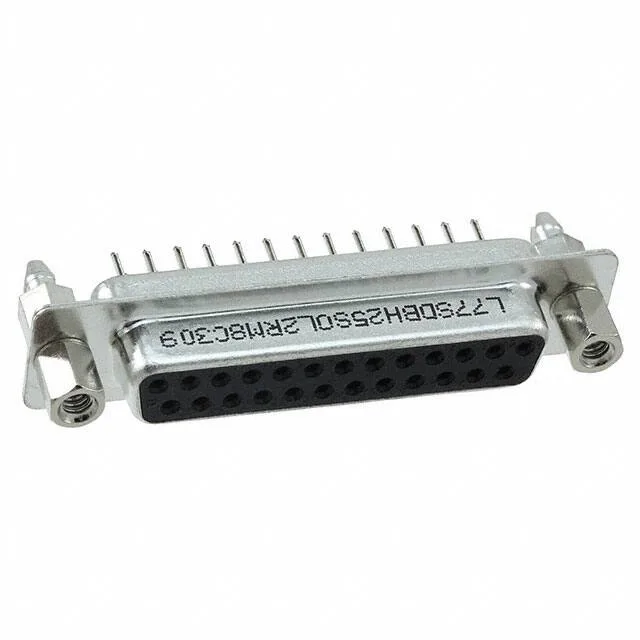

Amphenol L77SDBH25SOL2RM8C309
MPNL77SDBH25SOL2RM8C309
Active
CONN D-SUB RCPT 25POS VERT SLDR
$3.74Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SD |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | 5A |
| Contact form | Stamped |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | 30.0µin (0.76µm) |
