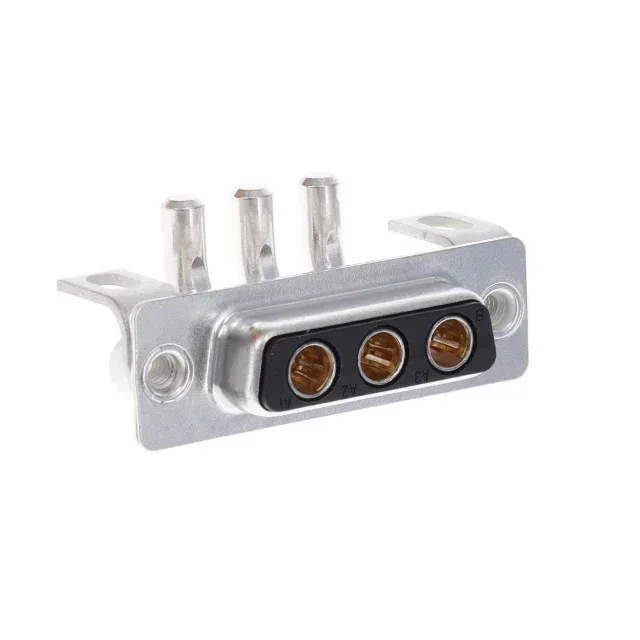

Amphenol LCC17A3W3SA4N0
MPNLCC17A3W3SA4N0
Active
CONN D-SUB RCPT 3POS R/A SLDR
$18.54Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCoolPower®, LCC17
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CoolPower®, LCC17 |
| Type | Power |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 55A |
| Shell size, connector layout | 2 (DA, A) - 3W3 |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 1 |
| Backset spacing | 0.478\" (12.14mm) |
| Positions | 3 (Power) |
| Contact finish thickness | 30.0µin (0.76µm) |
