Amphenol M12T-04BMMB-SL7002
MPNM12T-04BMMB-SL7002
Active

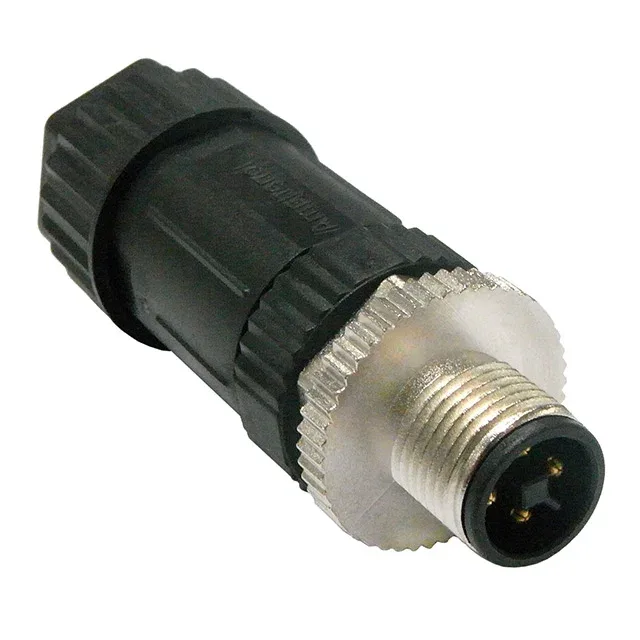

CONN PLUG MALE 4POS GOLD SCREW
$11.4Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 60VDC |
| Current rating | 12A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 105°C |
| Color | Black, Silver |
| Shell material | Zinc Alloy |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Shielding | Unshielded |
| Orientation | T |
| Termination | Screw |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
