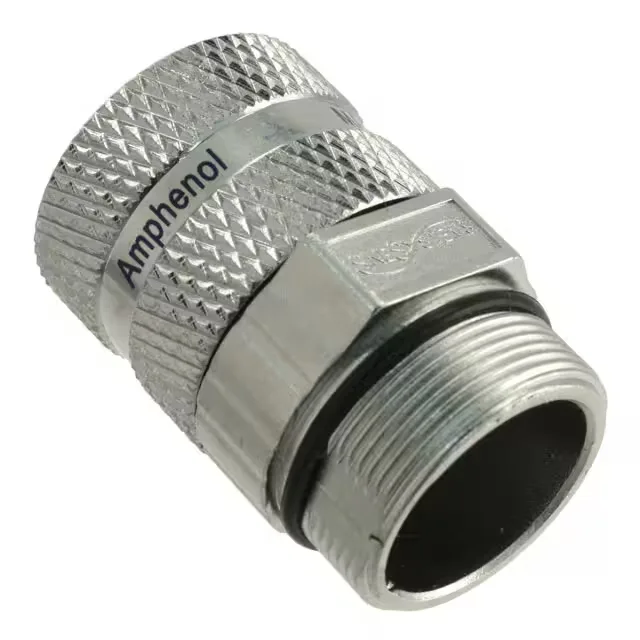

Amphenol MA1CAE1700
MPNMA1CAE1700
Active
CONN PLUG HSNG F/M 17POS INLINE
$15.53Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMotionGrade™ M23 Signal Standard Series, Threaded
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets or Male Pins |
| Series | MotionGrade™ M23 Signal Standard Series, Threaded |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Threaded |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -20°C ~ 130°C |
| Housing color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Coupling Nut |
| Shielding | Shielded |
| Orientation | E |
| Contact size | 1.0mm |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 17 |
| Shell size - insert | M23-17 |
